Route Traffic Through a Backup VTI Tunnel

Secure Firewall Threat Defense supports the configuration of a backup tunnel for the route-based (VTI) VPN. When the primary VTI is unable to route the traffic, the traffic in the VPN is tunneled through the backup VTI.

You can deploy the backup VTI tunnel in the following scenarios:

  • Both peers having service provider redundancy backup.

    In this case, there are two physical interfaces, acting as the tunnel sources for the two VTIs of the peers.

  • Only one of the peers having service provider redundancy backup.

    In this case, there’s an interface backup on only one side of the peer and on the other end, there is only one tunnel source interface.

Step

Do This

More Info

1

Review the guidelines and limitations.

Guidelines and Limitations for Virtual Tunnel Interfaces

2

Create the VTI interface.

Add a VTI Interface

3

In the Add Endpoint dialog box of the Create New VPN Topology wizard, click Add Backup VTI to configure the respective backup interface for each peer.

4

Configure the routing policy.

  • Choose Devices > Device Management, and edit the threat defense device.

  • Click Routing.

5

Configure the access control policy.

  • Choose Policies > Access Control.

Guidelines for Configuring a Backup VTI Tunnel

  • For an extranet peer, you can specify the tunnel source IP address of the backup interface and configure the tunnel destination IP on the managed peer.

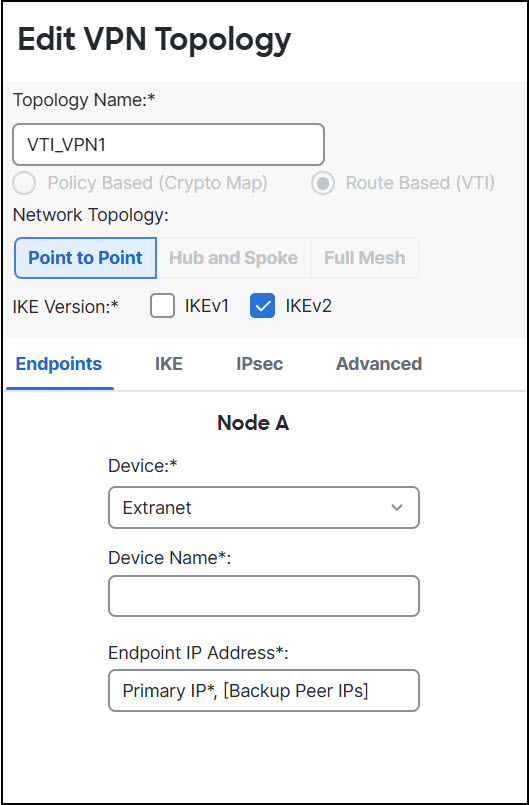

    You can specify the backup peer IP address in the Endpoint IP Address field of the Create New VPN Topology wizard.

  • After you configure the backup interfaces, configure the routing policy and access control policy for routing traffic.

    Though primary and backup VTIs are always available, traffic flows only through the tunnel that is configured in the routing policy. For detailed information, see Configure Routing and AC Policies for VTI.

  • When you configure a backup VTI, ensure that you include the backup tunnel to the same security zone as that of the primary VTI. No specific settings are required for the backup VTI in the AC policy page.

  • If you configure a static route for the backup tunnel, configure a static route with a different metric to handle the failover of the traffic flow over the backup tunnel.
