Configure elephant flow detection

Configure elephant flow detection to take actions on elephant flows. This helps resolve issues such as system duress, high CPU utilization, packet drops and related performance problems.

Attention

Elephant flow detection is not applicable for prefiltered, trusted, or fast-forwarded flows, which do not process through Snort. As elephant flows are detected by Snort, elephant flow detection is not applicable for encrypted traffic.

Procedure

Step 1

In the access control policy editor, click Advanced Settings from the More drop-down arrow at the end of the packet flow line. Then, click Edit (edit icon) next to Elephant Flow Settings.

If View (View button) appears instead, settings are inherited from an ancestor policy, or you do not have permission to modify the settings. If the configuration is unlocked, uncheck Inherit from base policy to enable editing.

Configure elephant flow detection

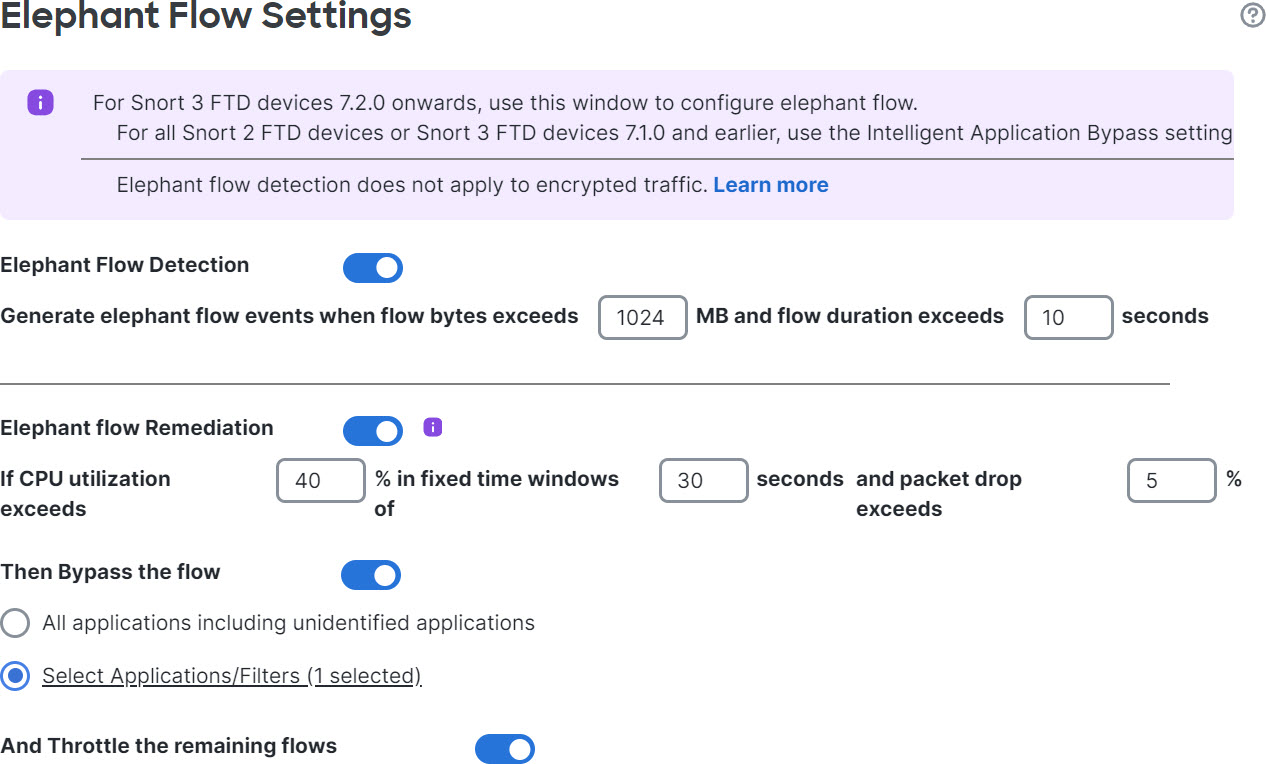

The diagram illustrates the steps to configure elephant flow detection in a network environment, highlighting key parameters and settings involved in the process.
Configure elephant flow detection

Step 2

Configure the values for flow bytes and flow duration for the Elephant Flow Detection toggle button that is enabled by default.

When they exceed your configured values, elephant flow events are generated.

Step 3

To remediate elephant flows, enable the Elephant Flow Remediation toggle button.

Step 4

To set the criteria for remediation of the elephant flow, configure the values for CPU utilization percentage, duration of fixed time windows, and packet drop %.

CPU utilization is calculated per elephant flow and is derived from the flow latency. If the CPU utilization crosses the configured threshold and other configurations, such as fixed time windows and packet drops, are also matched, the elephant flow remediation actions are applied. Similarly, packet drop calculation is based on the packets dropped per CPU. After the packet drop percentage exceeds the configured value on a specific CPU, the remediation actions are applied. For example, consider that configurations are set to the default, that is, CPU utilization of 40%, fixed time window of 30 seconds, and packet drop of 5%. On a specific CPU, if more than 5% of packet drops are detected and the CPU utilization per flow exceeds 40% in the fixed time frame of 30 seconds, then the flows are either bypassed or throttled.

Step 5

Configure the actions for elephant flow remediation when it meets the configured criteria.

  1. Bypass the flow—Enable this button to bypass Snort inspection for selected applications or filters. Choose from:

    • All applications including unidentified applications—Select this option to bypass all the application traffic. If you configure this option, you cannot configure the throttle action (rate-limit) for any flow.

    • Select Applications/Filters—Select this option to select the applications or filters whose traffic you want to bypass; see the topic Configuring Application Conditions and Filters in the Access Control Rules chapter in the Cisco Secure Firewall Management Center Device Configuration Guide.

  2. Throttle the flow—Enable this button to apply rate-limit to the flow and continue to inspect flows. Note that you can select the applications or filters to bypass Snort inspection and throttle the remaining flows.

Note

Automatic removal of throttle from a throttled elephant flow occurs when the system is out of duress, that is, the percentage of Snort packet drops is less than your configured threshold. Consequently, rate limiting is also removed.

You can also manually remove throttling from a throttled elephant flow, using these threat defense commands:

  • clear efd-throttle <5-tuple/all> bypass —This command removes throttling from the throttled elephant flow and bypasses Snort inspection.

  • clear efd-throttle <5-tuple/all> —This command removes throttling from the throttled elephant flow and Snort inspection continues. Elephant flow remediation is skipped after using this command.

    For more information about these commands, refer to the Cisco Secure Firewall Threat Defense Command Reference.

Step 6

In the Remediation Exemption Rule section, click Add Rule to configure L4 access control list (ACL) rules for flows that must be exempted from remediation.

  1. In the Add Rule window, use the Networks tab to add the network details, that is the source network and the destination network. Use the Ports tab to add the source port and the destination port.

    If an elephant flow is detected and it matches the rules that are defined, an event is generated with the reason as Elephant Flow Exempted in the Reason column header of Connection Events.

  2. In the Remediation Exemption Rule section, you can view the flows that are exempt from the remediation action.

  3. Click OK to save the elephant flow settings.

Step 7

Click Save to save the policy.

What to do next

Deploy configuration changes.

After configuring your elephant flow settings, monitor your connection events to see if any flows are detected, bypassed, or throttled. You can view this in the Reason field of your connection event. The three reasons for elephant flow connections are:

  • Elephant Flow

  • Elephant Flow Throttled

  • Elephant Flow Trusted

Attention
Enabling elephant flow detection alone does not cause generation of connection events for elephant flows. If a connection event is already logged for another reason and the flow is also an elephant flow, then the Reason field contains this information. However, to ensure that you are logging all elephant flows, you must enable connection logging in the applicable access control rules.

Refer to Cisco Secure Firewall Elephant Flow Detection for more information.
