Deploy cluster nodes manually - GWLB-based deployment

This task allows you to deploy cluster nodes so they form a cluster in Azure using Gateway Load Balancer-based deployment.

Deploy the cluster nodes so they form a cluster.

Procedure

Step 1

Log in to the Azure Portal: https://portal.azure.com

Step 2

Create a Resource Group.

  1. In the Basics tab, choose the Subscription and Resource Group from the drop-down lists.

  2. Choose the required Region.

Step 3

Create a Virtual Network with the necessary subnets: Management, Data and Cluster Control Link (CCL).

Note

Configure the CCL with the smallest subnet mask as required. Wider subnets can impact performance.

Refer to the Azure document for creating the Virtual Network and subnet: https://learn.microsoft.com/en-us/azure/virtual-network/quickstart-create-virtual-network?tabs=portal

Step 4

Go to the Marketplace and search for Cisco Secure Firewall Threat Defense Virtual – BYOL and PAYG and click Create.

Step 5

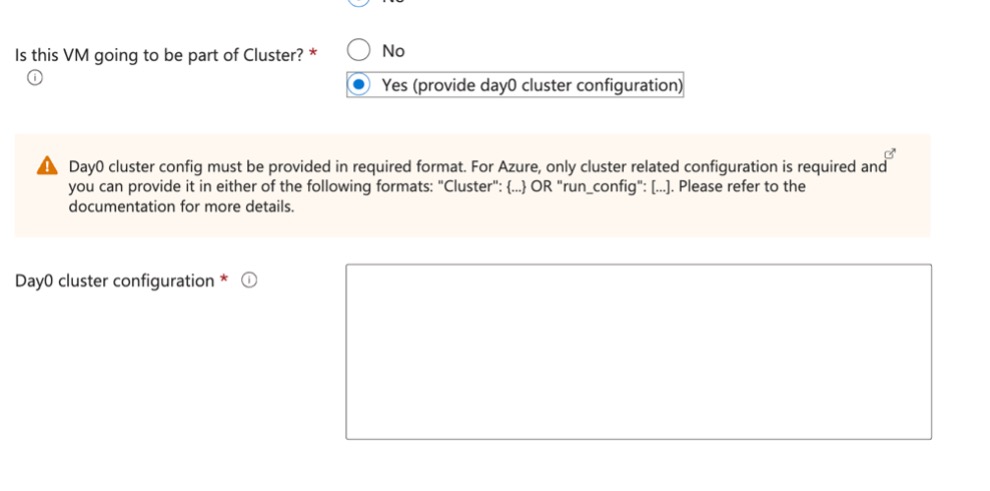

Fill the required details and choose Yes for Is this VM going to be part of Cluster?

The image illustrates the configuration settings required for deploying cluster nodes in a GWLB-based deployment on Azure, highlighting key parameters and options to be entered.

Paste the following cluster-related configuration in the text box.

"Cluster": {
"CclSubnetRange": "ip_address_start ip_address_end",	//mandatory user input
"ClusterGroupName": "cluster_name",	//mandatory user input
"HealthProbePort": "port_number",	//mandatory user input
"GatewayLoadBalancerIP": "ip_address",	 //mandatory user input
"EncapsulationType": "vxlan",
"InternalPort": "internal_port_number",
"ExternalPort": "external_port_number",
"InternalSegId": "internal_segment_id",
"ExternalSegId": "external_segment_id"
}

  1. Click Next and select the Virtual Network & Subnets.

  2. Click Review + create. Wait for the Threat Defense Virtual deployment to complete.

Step 6

Connect to the Threat Defense Virtual device and use the show cluster info command to confirm the cluster formation is successful.

> show cluster info
Cluster ngfwv-cluster: On
    Interface mode: individual
Cluster Member Limit : 16
    This is "4" in state CONTROL_NODE
        ID        : 0
        Version   : 9.23(1)
        Serial No.: 9AC1VMGJKAQ
        CCL IP    : 169.254.200.4
        CCL MAC   : 6045.bda8.e07b
        Module    : NGFWv
        Resource  : 4 cores / 14336 MB RAM
        Last join : 05:22:55 UTC Jul 14 2025
        Last leave: N/A
Other members in the cluster:
    There is no other unit in the cluster
>

Step 7

Configure the Azure Gateway Load Balancer. Refer to Auto Scale with Azure Gateway Load Balancer Use Case for more information.

Step 8

Add the control node to the Cloud-Delivered Firewall Management Center. See Onboard a Secure Firewall Threat Defense Cluster.
